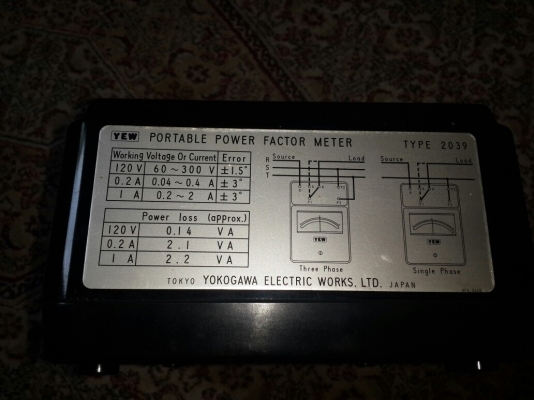

Yokogawa 2039 Series Portable Power Factor Meters

HOME > YOKOGAWA > PORTABLE-METERS > POWER-FACTOR > 2039Yokogawa 2039 Series Portable Power Factor MetersFor both single-phase and three-phasePhase Angle Scale includedExcellent current characteristic: 20 - 200\% of rated current (short time period)Wide range of applicable voltages: 60 - 300 V ACTaut-band suspension system eliminates friction and provides strong resistance to shock impact Yokogawa 203902Shown Product InformationDatasheet2.35 MBOrdering InfoPDF Help The Yokogawa 2039 Portable Power factor Meter is a revolutionary Series of portable wattmeters in which a power factor is used to operate the DC indicator. This is done using a transducer which provides a DC current proportionate to the voltage-current phase by means of a circuit. The 2039 series can be used in single-phase and balanced three-phase circuits. The electric transducer, combined with a high sensitivity moving coil type inducer based on Yokogawa's proprietary taut-band suspension system, provides a level of performance not possible with conventional HOME > YOKOGAWA > PORTABLE-METERS > POWER-FACTOR > 2039Yokogawa 2039 Series Portable Power Factor MetersFor both single-phase and three-phasePhase Angle Scale includedExcellent current characteristic: 20 - 200\% of rated current (short time period)Wide range of applicable voltages: 60 - 300 V ACTaut-band suspension system eliminates friction and provides strong resistance to shock impact Yokogawa 203902 Shown Product InformationDatasheet2.35 MBOrdering Info PDF Help The Yokogawa 2039 Portable Power factor Meter is a revolutionary Series of portable wattmeters in which a power factor is used to operate the DC indicator. This is done using a transducer which provides a DC current proportionate to the voltage-current phase by means of a circuit. The 2039 series can be used in single-phase and balanced three-phase circuits. The electric transducer, combined with a high sensitivity moving coil type inducer based on Yokogawa's proprietary taut-band suspension system, provides a level of performance not possible with conventional
